The Kustos Ultra is a 24v electromechanical operator equipped with a worm-drive.
There are two models available, the A25 and A40. The A25 model is suitable leafs up to 2.5 metres and up to 400kg and the A40 model is suitable for 4 metres wide and up to 500kg.

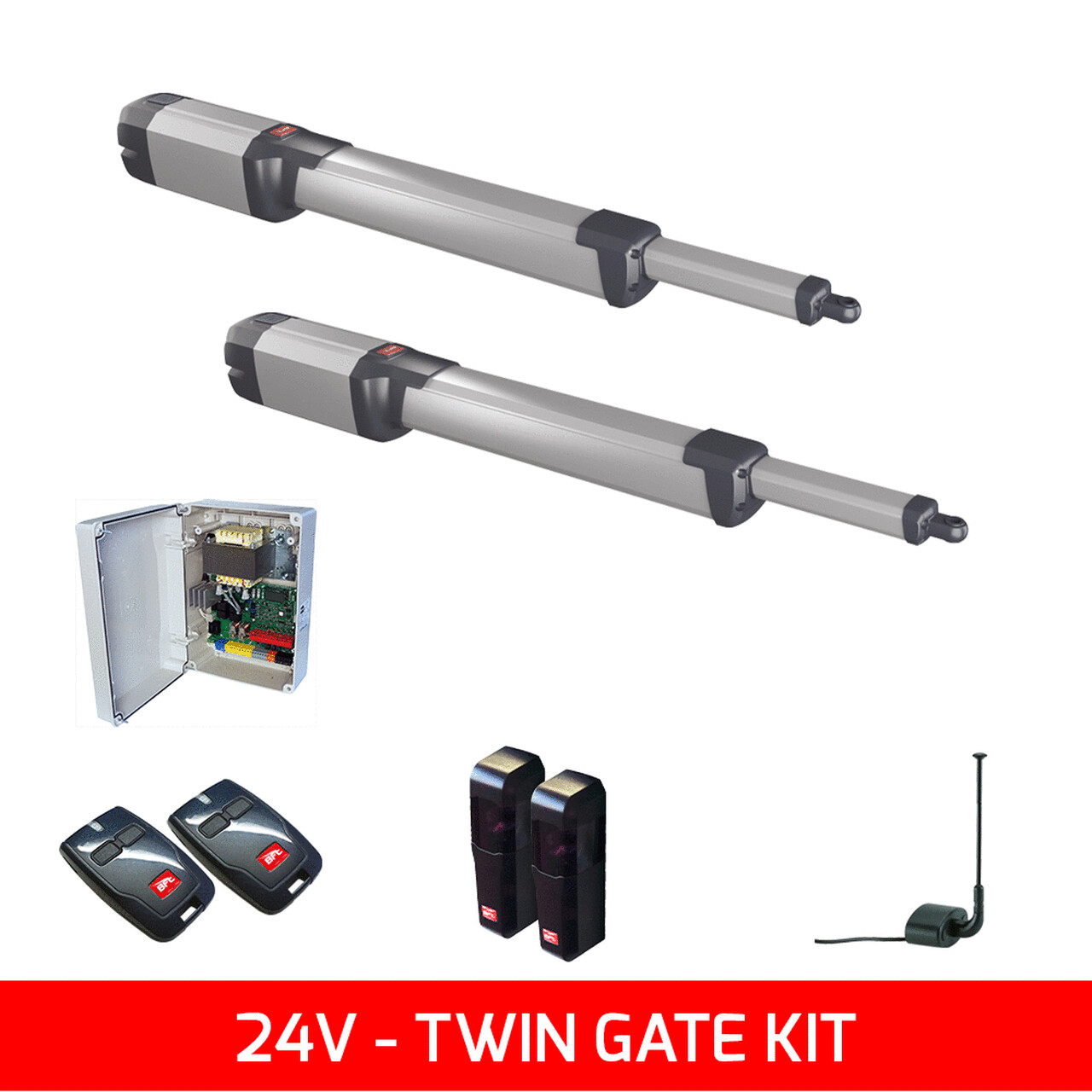

Included in the kit:
2x Kustos operators
1x Thalia control panel & receiver
2x Mitto radio transmitters
1x Pair of Compacta 180° photocells
1x Radio antenna
Manual click here
Guide click here

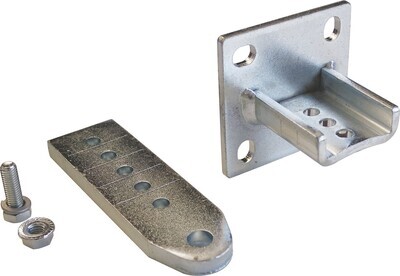

NOTE: If mounting to aluminium, wood or brick posts add the AJUSTABLE BOLT ON POST BRACKETS
1 x bracket per motor required, if ordering a twin kit add x 2
SKU: KITKUSTOSBTA25
Weight: 22.00 KGS
| Kustos BT A25 | Kustos BT A40 | |
| Power supply | 24V | 24V |
| Gate leaf length | 2.5m |
3m (Self-locking) 4m (Electric lock) |
| Max leaf weight | 400kg | 500kg |
| Control panel | THALIA L | THALIA L |
| Cycle time | 13 sec | 17 sec |
| Impact reaction | D-Track | D-Track |
| Frequency of use | Intensive | Intensive |
| Protection level | IP44 | IP44 |
