The Eli BT is available in a range of 24V electromechanical underground operators which are suitable for intensive usage.
There are two models available, the A35V fast operator and A40.
The A35 model is suitable leafs up to 3.5 metres and up to 200kg and the A40 model is suitable for 4 metres wide and up to 500kg.
Manual 24v click here
Manual 24v & 230v click here

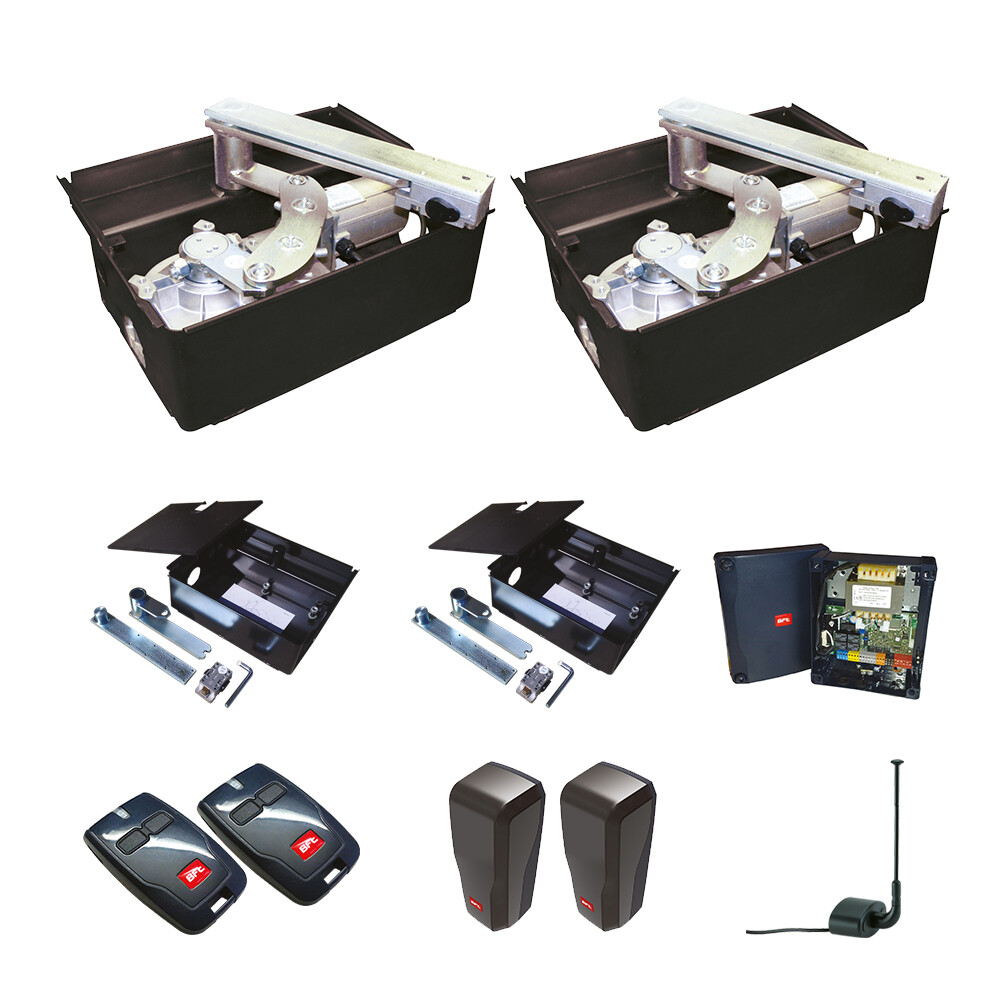

Included in the kit:
2x Eli BT operators and 2 x foundation boxes

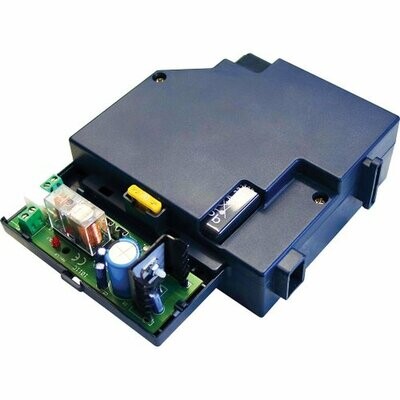

1x Thalia control panel & receiver
2x Mitto radio transmitters
1x Pair of Compacta 180° photocells
1x Radio antenna
SKU: KITELIBT
Weight: 59.00 KGS
230 volt versions available
| ELI BT A35V | ELI BT A40 | |
| Power supply | 24V | 24V |
| Gate leaf length | 3.5m | 4m |
| Max leaf weight | 200kg | 500kg |
| Control panel | THALIA | THALIA |
| Cycle time | 11 secs (with slowdown) | 14 secs (with slowdown) |
| Impact reaction | Electronic clutch | Electronic clutch |
| Protection rating | IP67 | IP67 |
| Temperature range | -20°C to 55°C | -20°C to 55°C |
| ELI AC A35V | ELI AC A40 | |
| Power supply | 230V | 230V |
| Gate leaf length | 3.5m | 4m |
| Max leaf weight | 200kg | 500kg |
| Control panel | RIGEL 6 | RIGEL 6 |
| Cycle time | 11 secs (no slowdown) | 13 secs (no slowdown) |
| Impact reaction | Electronic clutch | Electronic clutch |
| Protection rating | IP67 | IP67 |
| Temperature range | -20°C to 55°C | -20°C to 55°C |
